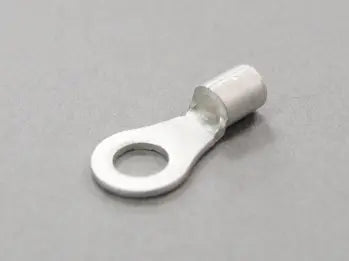

R3.5-5S (Package Qty=100)

Available
Login to View Price

1Package(1Package=100)



Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • Stud: #10
  • AWG: 12
  • B: 9.6mm / 0.38"
  • L: 20mm / 0.79"
  • F: 9.2mm / 0.36"
  • E: 6mm / 0.24"
  • øD: 5.1mm / 0.2"
  • ød: 3mm / 0.12"
  • ød2: 5.3mm / 0.21"
  • Wire Size Range for Solid Wire (mm): 1.82-2.40
  • Wire Size Range for Stranded Wire (mmø|): 2.63-4.60
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
  • Standards: UL, CSA
              • Manufacturer:
                NICHIFU
              Product Description

              1Package(1Package=100)



              Features
              • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
              • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
              • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
              Specifications
              • Stud: #10
              • AWG: 12
              • B: 9.6mm / 0.38"
              • L: 20mm / 0.79"
              • F: 9.2mm / 0.36"
              • E: 6mm / 0.24"
              • øD: 5.1mm / 0.2"
              • ød: 3mm / 0.12"
              • ød2: 5.3mm / 0.21"
              • Wire Size Range for Solid Wire (mm): 1.82-2.40
              • Wire Size Range for Stranded Wire (mmø|): 2.63-4.60
              • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
              • RoHS: RoHS 10
              • Standards: UL, CSA
