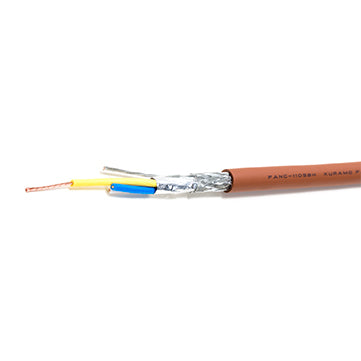

FANC-110SBH (1coil/100m≒328ft)

(1coil/100m≒328ft)

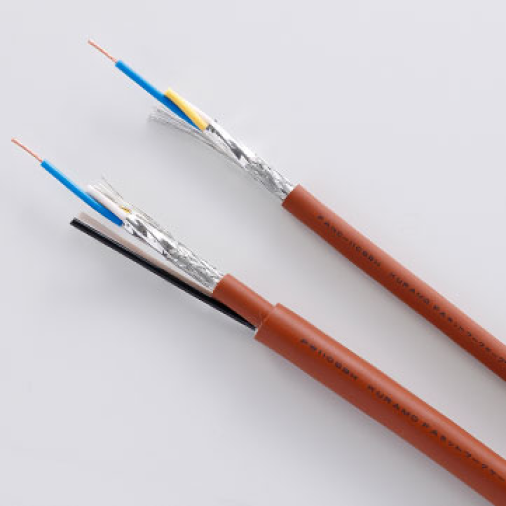

The FANC-110SBH Series are FA network cables designed to comply with CC-Link Ver.1.10. The FANC-110SBH S eries, when used to network CC-Link Ver.1.10 compliant equipment, allows the formation of a network subject to less restriction in cable connection than the FANC-SB Series (CC-Link Ver.1.00 compliant).
FANC-110SBH as standard of this series and its power pair built-in composite type,PW110BH, are certified to comply with the UL/cUL AWM requirements.

Features

• Double shield, 10Mbps transmission, RS-485 compliance
• Availability in a large variety of types to meet various application　requirements
  ※For details, refer to each cable's Specifications given below.
• The movable type FANC-110SBZ-5 cable is designed so that its transmittable
  distance is 50% that of its standard counterpart.
  ※The use of the cable at high ambient temperature may cause its transmittable
  distance to be shortened.
  ※ The PW110SBH's power pair (0.75㎟ ) is required to be used at a voltage less
  than 100V in such applications as DC24V power supply for remote I/O.

Size：20AWG × 3
Insulation：PEF
Insulation color：Blue, White, Yellow
Shield：Aluminum/polyester laminate tape + Tin coated annealed copper braid
Sheath：Oil and heat resistant PVC mat type
Sheath color：Brown
Sheath diameter：Approx.7.6㎜
Approx. weight：70（kg/㎞）
Conductor resistance（20℃）：34.5 Ω /㎞
Characteristic impedance（5MHz）：110 Ω
Attenuation（5MHz, 20℃）：3.5dB/100m
Temperature rating：75℃
Application：Fixed wiring
Adaptation standard：
UL AWM Style 2464
CSA C22.2
No.210

Construction
