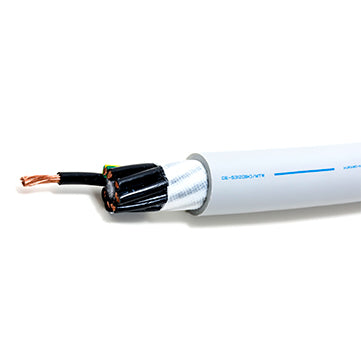

CE-531Z(BK)/MTW (1coil/100m≒328ft)
(1coil/100m≒328ft)
1. Scope
The specification is applied to movable cables rated 600V heat resistant polyvinyl chloride insulated and oil and heat resistant polyvinyl chloride sheathed cables.
2. Type, conductor size, adaptation standard, rating
Type, conductor size, adaptation standard and rating are described in Table 1.
3. Materials , construction and manufacturing methods
3.1 Conductor
The conductor shall be stranded wire s composed of annealed copper wires specified in JIS C 3102.
3.2Insulation
The conductor shall be covered with heat resistant polyvinyl chloride, of the nominal thickness shown in Table 2 , as in the shape of a concentric.
Average thickness of the insulation shall be not less than 90% of the value shown in Table 2 and minimum thickness at any point shall be not less than 80% of the value shown in Table 2.
3.3 Identification of cores
Insulation color is black, and Arabic numerals which indicate conductor number are printed on the surface of insulation by white ink.
G/Y : Yellow stripes on the green insulation.
(by the circumference, the covered ratio of Green and Yellow is 60 to 40)
3.4 Assembly of cores
The requisite number of cores shall be assembled to S-lay (Left-hand) with filler and rolled up with tape if necessary (figure 1).
3.5 Sheath
The assembled cores shall be covered with oil and heat resistant polyvinyl chloride, of the nominal thickness shown in Table 2, as in the shape of a concentric circle.
Average thickness of the sheath shall be not less than 90% of the value shown in Table 2
and minimum thickness at any point shall be not less than 85% of the value shown in Table 2.
The color of sheath is light gray.
Attache Table 2
Construction
-
Certification:
-
Category:Global Cables
-
Manufacturer:Kuramo
-
Insulator:Heat resistant PVC
