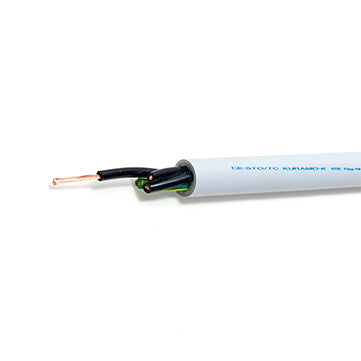

CE-STO/TC (1coil/100m≒328ft)

Product Description

(1coil/100m≒328ft)

1. Scope

This specification applies to the power cable (CE-STO/TC) using heat-resistant polyvinyl chloride for insulation and oil-resistant and heat-resistant polyvinyl chloride for sheath.

2. Type, conductor size and applicable standard

Type and conductor size and applicable standard are table 1.

3. Materials, construction and manufacturing methods

3.1 Conductor
The conductors shall be stranded wires composed of annealed copper wires specified in JIS C 3102.

3.2 Insulation
The conductors shall be covered concentrically with heat-resistant polyvinyl chloride of the thickness indicated in table 2.

3.3 Identification of cores
The insulation is colored black and printed in Arabic numerals by white ink.
G/Y : Yellow stripes on the green insulation.
(by the circumference, the covered ratio of Green and Yellow is 60 to 40)

3.4 Assembly of cores
The requisite number of cores shall be stranded by left-hand stranding (S-lay).
The fillers are inserted to the gap of the core, to make it a circular form, if necessary (figure 1).

3.5 Sheath
The assembled cores shall be covered concentrically with oil-resistant and heat-resistant polyvinyl chloride (colored light gray), of the thickness indicated in table 2, as in the shape of a concentric circle.

Table 2

 Construction
