KDF UL AWM 2103/2517 (1coil/100m≒328ft)

(1coil/100m≒328ft)

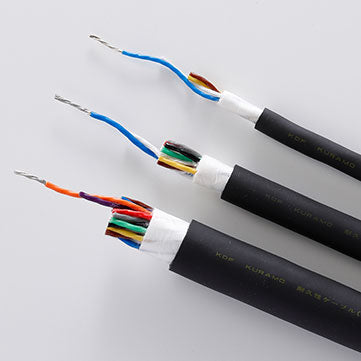

KURAMO Durable Robot Cable (ETFE Insulation)
CE
NFPA70 NFPA79 Compliance

Use
・Wiring to cable carriers※

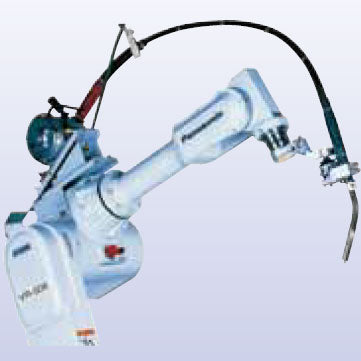

・Wiring to robot arm turning part
・Wiring to the portion requiring noise resistance（ Shielded type ： KDF-SB）
※If you would like to know the detail of how to wiring in USA, you should refer to NFPA70 and NFPA79.

Features
・Fluorocarbon resin insulation, bending resistance
・Noise resistance（Shielded type：KDF-SB）
・Heat resistance
・Sheath mat type
・Cable designed to UL, cUL standards
・Corresponding to NFPA70 and NFPA79
（Type CM for Communications Circuits）
・Corresponding to CE

Temperature range
Fixed：-40 〜105℃ ※
Flexing：0 〜105℃
※ If you use it in temperature less than 0℃ , you should be careful about shocks, flexure, vibration and so on.

Bending radius
Fixed：4 times or more of the cable diameter
Flexing：7.5 times or more of the cable diameter

RoHS Directive
Conformity

Technical data

＜ Appliance to 1-25P ＞

Construction

Conductors Identification

Example : KDF 8（4P）× 0.3mm2（23AWG）

Conductors Layout

＜Appliance to 30P＞

Construction

Conductors identification and layout

Construction table

Allowable ampacity

Allowable ampacity (A) for cable is based on calculation under aerial one-cable and temperature at 30℃ , not repressenting a guaranteed value.
Allowable ampacity cable at ambient temperature abobe 30℃ is to be determined by multiplying the current value by the appropriate current reduction factorin the following table1.
The allowable ampacity for cable are the calculated by JCS0168, but not guaranteed.
　　　JCS0168…　“Calculation of the current rating of power cables for rated voltage up to and including 33kV”

Table1 Current reduction factors
