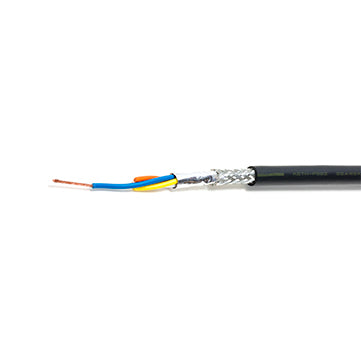

KETH-PSBZ (1coil/100m≒328ft)
(1coil/100m≒328ft)
The KETH-PSB Series are shielded twisted pair cables designed for use in EtherNet/IP, PROFINET, EtherCAT, FL-Net and other industrial Ethernet connection and PLC-to-PLC, PLC-to-host computer and other Ethernet connection.
The KETH-PSB Series are designed using oil resistant PVC sheath, allowing them to be used for cable wiring in oil environment.
The KETH-PSB Series are cable designed with double shield (AL-PET tape + braid), noise resistance
Size：22AWG × 4P
Shield：Aluminum/polyester laminate tape + Tin coated annealed copper braid
Sheath：Oil resistant polyvinyl chloride
Sheath color：Black
Sheath Overall diameter：Approx.6.5㎜
Approx. mass per unit length：55kg/km
Adaptation standard(Rating : Voltage and Temperature)：
TIA/EIA-568-B.2 Category.5e
UL444(CM):(--,75°C)
CSA C22.2 No.214(CM):(--,75°C)
Transmission parameter specification

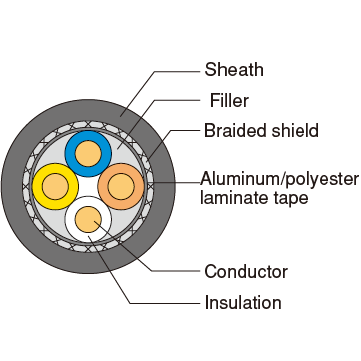

Construction
-
Certification:
-
Category:Network Cables,Robot Cables,Global Cables
-
Manufacturer:Kuramo
-
Insulator:XLPE
Product Description
(1coil/100m≒328ft)
The KETH-PSB Series are shielded twisted pair cables designed for use in EtherNet/IP, PROFINET, EtherCAT, FL-Net and other industrial Ethernet connection and PLC-to-PLC, PLC-to-host computer and other Ethernet connection.
The KETH-PSB Series are designed using oil resistant PVC sheath, allowing them to be used for cable wiring in oil environment.
The KETH-PSB Series are cable designed with double shield (AL-PET tape + braid), noise resistance
Specifications
Size：22AWG × 4P
Shield：Aluminum/polyester laminate tape + Tin coated annealed copper braid
Sheath：Oil resistant polyvinyl chloride
Sheath color：Black
Sheath Overall diameter：Approx.6.5㎜
Approx. mass per unit length：55kg/km
Adaptation standard(Rating : Voltage and Temperature)：
TIA/EIA-568-B.2 Category.5e
UL444(CM):(--,75°C)
CSA C22.2 No.214(CM):(--,75°C)
Transmission parameter specification
Construction
