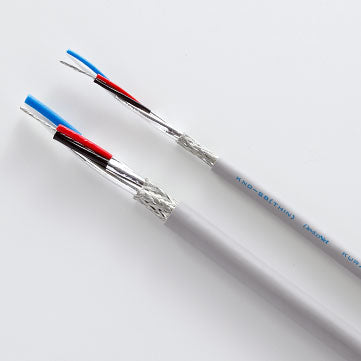

KND-SB（THIN）(1coil/100m≒328ft)
(1coil/100m≒328ft)
The KND-SB Series are FA network cables designed to comply with the ODVA proposed FA Open Network, DeviceNet specifications. The KND-SB Series cables are of signal/power pair combined type, providing labor savings in cable connection work.
Features
Electrical characteristics and construction suited to DeviceNet specifications
Double shield, oil resistance, heat resistance （75℃）, flame resistance （vertical tray flame test, FT-4）
UL/CSA certification (UL13 CL2/PLTC, CSA AWM)
※The use of the cable at high ambient temperature may cause its transmittable distance to be shortened.
Size：24AWG × 1P+22AWG × 1P
Insulation：PEF+PVC
Shield：Aluminum/polyester laminate tape + Tin coated annealed copper braid
Sheath：Oil and heat resistant, flame resistant PVC
Sheath color： light gray
Sheath Overall diameter：Approx.7㎜
Adaptation standard：
UL13(PLTC)
CSA C22.2 No.210(AWM)

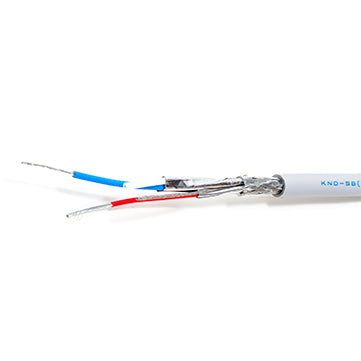

Construction
-
Certification:
-
Category:Network Cables,Global Cables
-
Manufacturer:Kuramo
-
Insulator:PEF
Product Description
(1coil/100m≒328ft)
The KND-SB Series are FA network cables designed to comply with the ODVA proposed FA Open Network, DeviceNet specifications. The KND-SB Series cables are of signal/power pair combined type, providing labor savings in cable connection work.
Features
Electrical characteristics and construction suited to DeviceNet specifications
Double shield, oil resistance, heat resistance （75℃）, flame resistance （vertical tray flame test, FT-4）
UL/CSA certification (UL13 CL2/PLTC, CSA AWM)
※The use of the cable at high ambient temperature may cause its transmittable distance to be shortened.
Specifications
Size：24AWG × 1P+22AWG × 1P
Insulation：PEF+PVC
Shield：Aluminum/polyester laminate tape + Tin coated annealed copper braid
Sheath：Oil and heat resistant, flame resistant PVC
Sheath color： light gray
Sheath Overall diameter：Approx.7㎜
Adaptation standard：
UL13(PLTC)
CSA C22.2 No.210(AWM)
Construction
