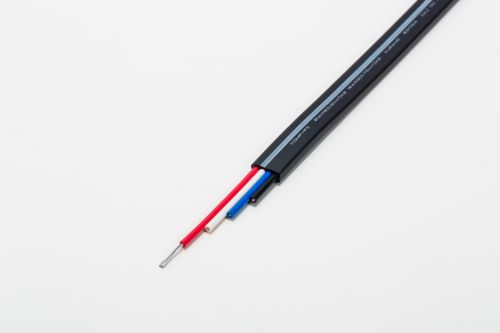

KOMP-FII (1coil/100m≒328ft)

(1coil/100m≒328ft)

The KOMP Series are FA network cables designed to comply with the ODVA proposed FA Open Network, CompoNet specifications.
Flexibility, oil resistance, heat resistance(90℃ ), flame resistance (vertical tray flame test), UL13(PLTC), UL444(CM)

Size：
21AWG(0.5mm2 ) × 2(for communication)
19AWG(0.75mm2 ) × 2(for power supply)
Insulation：Heat resistant polyvinyl chloride
Insulation color：Communication pair： Blue, White Power pair： Black, Red
Sheath：Oil resistant polyvinyl chloride (Black)
Overall diameter：Approx.12.25mm × Approx.4.66 mm
Approx. mass per unit length：95kg/km
Adaptation standard(Rating : Voltage and Temperature)：
UL13(PLTC) : (--, 90°C) , UL444(CM) : (--, 90°C)
CSA C22.2 No.214(CM) : (--, 90°C)

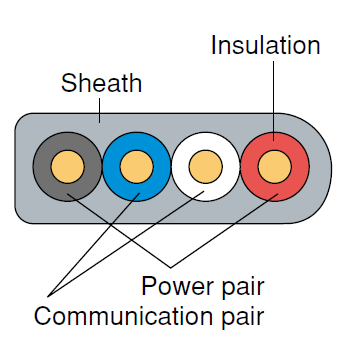

Construction
