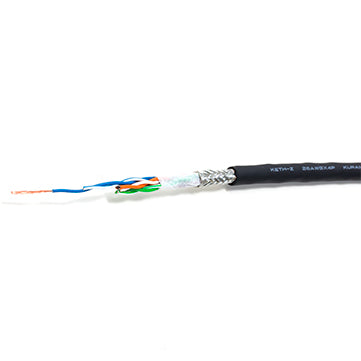

KETH-Z (1coil/100m≒328ft)
(1coil/100m≒328ft)
The KETH Series are shielded twisted pair cables designed for use in EtherNet/IP, PROFINET, FL-Net and other industrial Ethernet connection and PLCto-
PLC, PLC-to-host computer and other Ethernet connection. The KETH Series are designed using oil resistant PVC for their sheaths, allowing them to
be used for cable wiring under environment where oil splashing may occur. The KETH Series cables are designed to be attached to various types of
connectors. KURAMO offers services necessary for such attachment.
Size：26AWG × 4P
Shield：Tin coated copper braid
Sheath：Oil resistant polyvinyl chloride
Sheath color：Black
Sheath Overall diameter：Approx.5.9㎜
Maximum transmission distance (20°C)：45m
Adaptation standard：
TIA/EIA-568-B.2 Category 5
UL758(AWM STYLE 20276):(30V,80°C)
CSA C22.2 No.210(AWM):(30V,80°C)
Transmission parameter specification
Construction
-
Certification:
-
Category:Network Cables,Robot Cables,Global Cables
-
Manufacturer:Kuramo
-
Insulator:PE
Product Description
(1coil/100m≒328ft)
The KETH Series are shielded twisted pair cables designed for use in EtherNet/IP, PROFINET, FL-Net and other industrial Ethernet connection and PLCto-
PLC, PLC-to-host computer and other Ethernet connection. The KETH Series are designed using oil resistant PVC for their sheaths, allowing them to
be used for cable wiring under environment where oil splashing may occur. The KETH Series cables are designed to be attached to various types of
connectors. KURAMO offers services necessary for such attachment.
Specifications
Size：26AWG × 4P
Shield：Tin coated copper braid
Sheath：Oil resistant polyvinyl chloride
Sheath color：Black
Sheath Overall diameter：Approx.5.9㎜
Maximum transmission distance (20°C)：45m
Adaptation standard：
TIA/EIA-568-B.2 Category 5
UL758(AWM STYLE 20276):(30V,80°C)
CSA C22.2 No.210(AWM):(30V,80°C)
Transmission parameter specification
Construction
