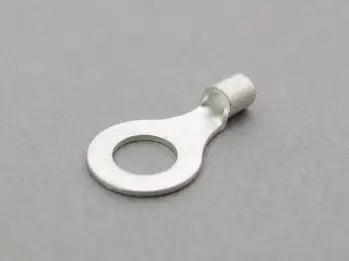

R2-6 (Package Qty=100)

Available
Login to View Price

1Package(1Package=100)

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • Stud: 1/4"
  • AWG: 16-14
  • B: 12mm / 0.47"
  • L: 21.5mm / 0.85"
  • F: 11mm / 0.43"
  • E: 4.5mm / 0.18"
  • øD: 4.2mm / 0.17"
  • ød: 2.3mm / 0.09"
  • ød2: 6.4mm / 0.25"
  • Wire Size Range for Solid Wire (mm): 1.14-1.82
  • Wire Size Range for Stranded Wire (mmø|): 1.04-2.63
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
  • Standards: UL, CSA, JIS
              • Manufacturer:
                NICHIFU
              Product Description

              1Package(1Package=100)

              Features
              • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
              • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
              • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
              Specifications
              • Stud: 1/4"
              • AWG: 16-14
              • B: 12mm / 0.47"
              • L: 21.5mm / 0.85"
              • F: 11mm / 0.43"
              • E: 4.5mm / 0.18"
              • øD: 4.2mm / 0.17"
              • ød: 2.3mm / 0.09"
              • ød2: 6.4mm / 0.25"
              • Wire Size Range for Solid Wire (mm): 1.14-1.82
              • Wire Size Range for Stranded Wire (mmø|): 1.04-2.63
              • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
              • RoHS: RoHS 10
              • Standards: UL, CSA, JIS
