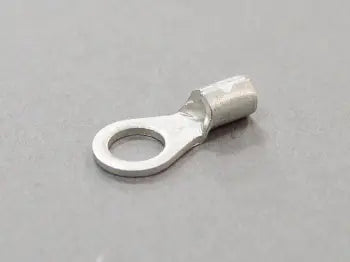

R1.25-4M (Package Qty=100)

Available
Login to View Price

1Package(1Package=100)

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • Stud: #8
  • AWG: 22-16
  • B: 6.8mm / 0.27"
  • L: 13.9mm / 0.55"
  • F: 6mm / 0.24"
  • E: 4.5mm / 0.18"
  • øD: 3.4mm / 0.13"
  • ød: 1.7mm / 0.07"
  • ød2: 4.3mm / 0.17"
  • Wire Size Range for Solid Wire (mm): 0.57-1.44
  • Wire Size Range for Stranded Wire (mmø|): 0.25-1.65
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • RoHS: RoHS 10
  • Standards: UL, CSA
      • Manufacturer:
        NICHIFU
      Product Description

      1Package(1Package=100)

      Features
      • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
      • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
      • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
      Specifications
      • Stud: #8
      • AWG: 22-16
      • B: 6.8mm / 0.27"
      • L: 13.9mm / 0.55"
      • F: 6mm / 0.24"
      • E: 4.5mm / 0.18"
      • øD: 3.4mm / 0.13"
      • ød: 1.7mm / 0.07"
      • ød2: 4.3mm / 0.17"
      • Wire Size Range for Solid Wire (mm): 0.57-1.44
      • Wire Size Range for Stranded Wire (mmø|): 0.25-1.65
      • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
      • RoHS: RoHS 10
      • Standards: UL, CSA
