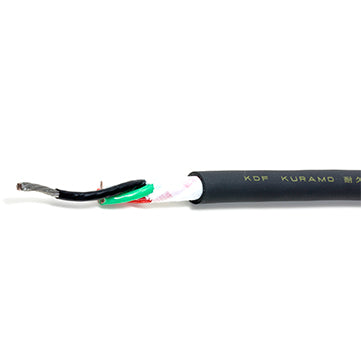

KDF-L UL AWM 2103/2517 (1coil/100m≒328ft)

Available
Login to View Price

For Quotation, please click the Contact Us button below.

(1coil/100m≒328ft) Basically 100m MOQ,

Cutting under 100m or Make to order should be confirm with us.

KURAMO Bending Resistant Cable
(ETFE Insulated/Layer Stranded Type)
NFPA70 NFPA79 Compliance
UL AWM 2103/2517

Use

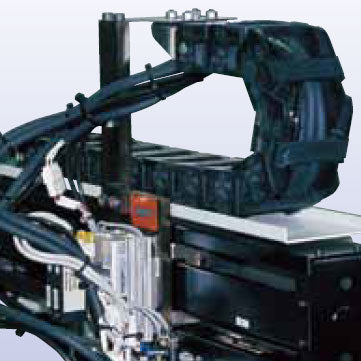

・Wiring to cable carriers※
・Wiring to the portion requiring noise resistance( Shielded type : KDF-SBL)
※If you would like to know the detail of how to wiring in USA, you should refer to NFPA70 and NFPA79.


Features
・Fluorocarbon resin insulation, bending resistance
・Noise resistance(Shielded type:KDF-SBL)
・Heat resistance
・Sheath mat type
・Cable designed to UL, cUL standards
・Corresponding to NFPA70 and NFPA79
(Type CM for Communications Circuits)


Temperature range
Fixed:-40 〜105℃ ※
Flexing:0 〜105℃
※ If you use it in temperature less than 0℃ , you should be careful about shocks, flexure, vibration and so on.

Bending radius
Fixed:4 times or more of the cable diameter
Flexing:7.5 times or more of the cable diameter

RoHS Directive
Conformity

Technical data

Technical data KDF-L KDF-SBL

Construction
Construction KDF-L KDF-SBL
Conductors Identification

Conductors identification KDF-L KDF-SBL

Example : KDF-SBL  3 × 1.25mm2(16AWG)

Example : KDF-SBL  3 × 1.25mm2(16AWG)



Construction table

Construction table KDF-L KDF-SBL

Allowable ampacity

Allowable ampacity (A) for cable is based on calculation under aerial one-cable and temperature at 30℃ , not repressenting a guaranteed value.
Allowable ampacity cable at ambient temperature abobe 30℃ is to be determined by multiplying the current value by the appropriate current reduction factorin the following table1.
The allowable ampacity for cable are the calculated by JCS0168, but not guaranteed.
   JCS0168… “Calculation of the current rating of power cables for rated voltage up to and including 33kV”

Table1 Current reduction factors
Table1 Current reduction factors KDF


  • Certification:
    KDF-L UL AWM 2103/2517  (1coil/100m≒328ft) KDF-L UL AWM 2103/2517  (1coil/100m≒328ft) KDF-L UL AWM 2103/2517  (1coil/100m≒328ft) KDF-L UL AWM 2103/2517  (1coil/100m≒328ft) KDF-L UL AWM 2103/2517  (1coil/100m≒328ft) KDF-L UL AWM 2103/2517  (1coil/100m≒328ft)
  • Category:
    Robot Cables,Global Cables
  • Manufacturer:
    Kuramo
  • Insulator:
    Fluorocarbon resin (ETFE)
  • Cable Carrier Resistant
  • Flame Retardant
  • Flexible Robot Cable
  • Heat Resistant
  • Left/Right Bending Durability
  • Oil Resistant
  • Torsion Resistant
Nominal cross sectional area
Number of conductors
Product Description

For Quotation, please click the Contact Us button below.

(1coil/100m≒328ft) Basically 100m MOQ,

Cutting under 100m or Make to order should be confirm with us.

KURAMO Bending Resistant Cable
(ETFE Insulated/Layer Stranded Type)
NFPA70 NFPA79 Compliance
UL AWM 2103/2517

Use
・Wiring to cable carriers※
・Wiring to the portion requiring noise resistance( Shielded type : KDF-SBL)
※If you would like to know the detail of how to wiring in USA, you should refer to NFPA70 and NFPA79.


Features
・Fluorocarbon resin insulation, bending resistance
・Noise resistance(Shielded type:KDF-SBL)
・Heat resistance
・Sheath mat type
・Cable designed to UL, cUL standards
・Corresponding to NFPA70 and NFPA79
(Type CM for Communications Circuits)


Temperature range
Fixed:-40 〜105℃ ※
Flexing:0 〜105℃
※ If you use it in temperature less than 0℃ , you should be careful about shocks, flexure, vibration and so on.

Bending radius
Fixed:4 times or more of the cable diameter
Flexing:7.5 times or more of the cable diameter

RoHS Directive
Conformity

Specifications
Technical data

Technical data KDF-L KDF-SBL

Construction
Construction KDF-L KDF-SBL
Conductors Identification

Conductors identification KDF-L KDF-SBL

Example : KDF-SBL  3 × 1.25mm2(16AWG)

Example : KDF-SBL  3 × 1.25mm2(16AWG)



Construction table

Construction table KDF-L KDF-SBL

Allowable ampacity

Allowable ampacity (A) for cable is based on calculation under aerial one-cable and temperature at 30℃ , not repressenting a guaranteed value.
Allowable ampacity cable at ambient temperature abobe 30℃ is to be determined by multiplying the current value by the appropriate current reduction factorin the following table1.
The allowable ampacity for cable are the calculated by JCS0168, but not guaranteed.
   JCS0168… “Calculation of the current rating of power cables for rated voltage up to and including 33kV”

Table1 Current reduction factors
Table1 Current reduction factors KDF
