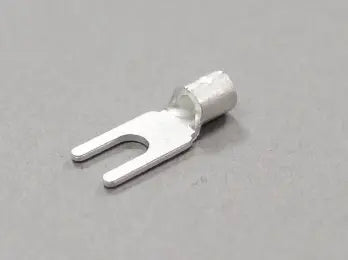

2Y-3 (Package Qty=100)

Available
Login to View Price

1Package(1Package=100)

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • Stud: #4
  • AWG: 16-14
  • B: 5.9mm / 0.23"
  • L: 15.8mm / 0.62"
  • F: 6.6mm / 0.26"
  • E: 4.5mm / 0.18"
  • øD: 4.2mm / 0.17"
  • ød: 2.3mm / 0.09"
  • ød2: 3.2mm / 0.13"
  • Wire Size Range for Solid Wire (mm): 1.14-1.82
  • Wire Size Range for Stranded Wire (mmø|): 1.04-2.63
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • Standards: UL, CSA
  • RoHS: RoHS 10
            • Manufacturer:
              NICHIFU
            Product Description

            1Package(1Package=100)

            Features
            • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
            • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
            • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
            Specifications
            • Stud: #4
            • AWG: 16-14
            • B: 5.9mm / 0.23"
            • L: 15.8mm / 0.62"
            • F: 6.6mm / 0.26"
            • E: 4.5mm / 0.18"
            • øD: 4.2mm / 0.17"
            • ød: 2.3mm / 0.09"
            • ød2: 3.2mm / 0.13"
            • Wire Size Range for Solid Wire (mm): 1.14-1.82
            • Wire Size Range for Stranded Wire (mmø|): 1.04-2.63
            • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
            • Standards: UL, CSA
            • RoHS: RoHS 10
