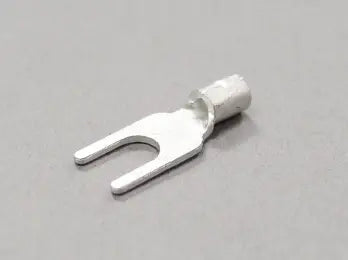

1.25Y-3L (Package Qty=100)

Available
Login to View Price

1Package(1Package=100)

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • Stud: #6
  • AWG: 22-16
  • B: 6.2mm / 0.24"
  • L: 16mm / 0.63"
  • F: 6.8mm / 0.27"
  • E: 4.5mm / 0.18"
  • øD: 3.4mm / 0.13"
  • ød: 1.7mm / 0.07"
  • ød2: 3.7mm / 0.15"
  • Wire Size Range for Solid Wire (mm): 0.57-1.44
  • Wire Size Range for Stranded Wire (mmø|): 0.25-1.65
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • Standards: UL, CSA
  • RoHS: RoHS 10
    • Manufacturer:
      NICHIFU
    Product Description

    1Package(1Package=100)

    Features
    • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
    • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
    • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
    Specifications
    • Stud: #6
    • AWG: 22-16
    • B: 6.2mm / 0.24"
    • L: 16mm / 0.63"
    • F: 6.8mm / 0.27"
    • E: 4.5mm / 0.18"
    • øD: 3.4mm / 0.13"
    • ød: 1.7mm / 0.07"
    • ød2: 3.7mm / 0.15"
    • Wire Size Range for Solid Wire (mm): 0.57-1.44
    • Wire Size Range for Stranded Wire (mmø|): 0.25-1.65
    • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
    • Standards: UL, CSA
    • RoHS: RoHS 10
