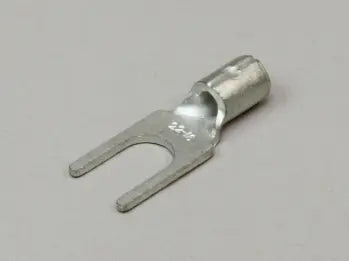

1.25Y-3.5K (Package Qty=100)

Available
Login to View Price

1Package(1Package=100)

Features
  • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
  • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
  • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
Specifications
  • Stud: #6
  • AWG: 22-16
  • B: 5.6mm / 0.22"
  • L: 15mm / 0.59"
  • F: 5.8mm / 0.23"
  • E: 4.5mm / 0.18"
  • øD: 3.4mm / 0.13"
  • ød: 1.7mm / 0.07"
  • ød2: 3.7mm / 0.15"
  • Wire Size Range for Solid Wire (mm): 0.57-1.44
  • Wire Size Range for Stranded Wire (mmø|): 0.25-1.65
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • Standards: UL, CSA
  • RoHS: RoHS 10
      • Manufacturer:
        NICHIFU
      Product Description

      1Package(1Package=100)

      Features
      • MATERIAL: Oxygen free copper strip/tube (electro-tin-plating).
      • RATED CURRENT: Please click here to see the amperage rating table for insulated wires.
      • STANDARDS: UL 486A-468B (File No. E44245), CSA C22.2 (File No. LR-28418), JIS C2805 and JIS C2806
      Specifications
      • Stud: #6
      • AWG: 22-16
      • B: 5.6mm / 0.22"
      • L: 15mm / 0.59"
      • F: 5.8mm / 0.23"
      • E: 4.5mm / 0.18"
      • øD: 3.4mm / 0.13"
      • ød: 1.7mm / 0.07"
      • ød2: 3.7mm / 0.15"
      • Wire Size Range for Solid Wire (mm): 0.57-1.44
      • Wire Size Range for Stranded Wire (mmø|): 0.25-1.65
      • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
      • Standards: UL, CSA
      • RoHS: RoHS 10
